ShangHai Samro Homogenizer CO.,LTD Samro Homogenizer - Your Best Choice
10 Years
| Ask Lasest Price | |
| Brand Name : | SAMRO |
| Model Number : | SRH50-80 |
| Certification : | ISO9001,CCC,CE |
| Price : | USD 2800 set |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 80 sets per month |
| Delivery Time : | 5-15 days |

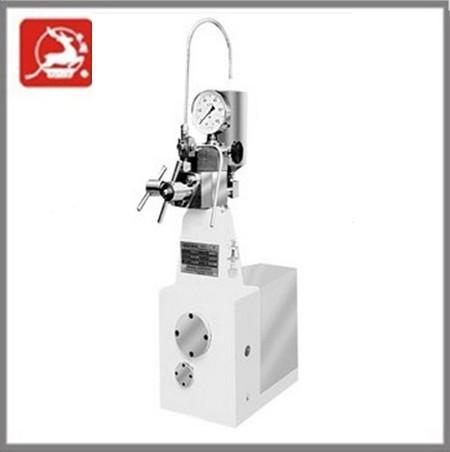

Stainless Steel 304 Lab Homogeniser Portable Industrial 3 Phase
Specifications
| Model | SRH50-80 | |
| Number of Plunger | 1 | |
| Rated flow | 50L/H | |
| Maximum pressure | 80Mpa | |
| Rated pressure | 0-64Mpa | |
| Minimum capacity for experiment | 200ML | |
| Power | 3KW | |
| Weight | 270KG | |
| Size L×W×H | 0.7*0.4*1.3M | |
Features:
Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.
Plunger:the 4th generation stainless alloy(PH-type).
Check valve:the 4th generation stainless alloy (GrMoFr),abrade-resisting and impact-resisting.
Pump block: stainless steel.
Plunger sealing:X4310 and PP spacer with heat-proof reaching 150°C.
Homogenizing valve: the 3rd special stainless alloy;
All the above-mentioned material are according with sanitary rules and suitable for CIP cleaning
|
|
