    500 L/H Ice Cream Homogenizer , Milk Homogeniser Stainless Steel Material

    Ask Lasest Price
    Brand Name : SAMRO
    Model Number : SRH500-100
    Certification : ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days after receiving down payment
    • Product Details
    • Company Profile

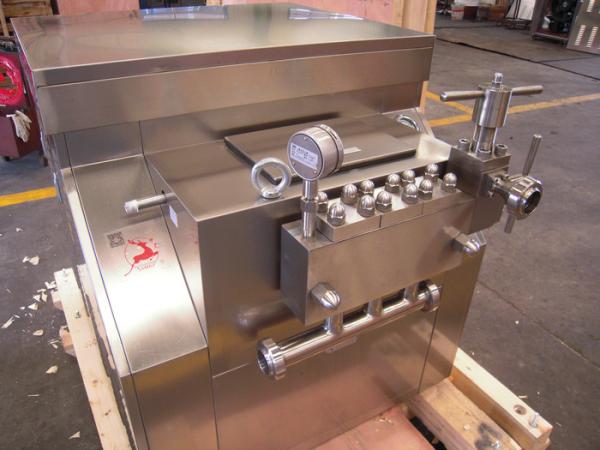

    500 L/H Ice Cream Homogenizer , Milk Homogeniser Stainless Steel Material

    500 L/H Ice Cream Homogenizer , Milk Homogeniser Stainless Steel Material​


    Milk Homogeniser Specifications:


    This small scale juice high pressure automatic homogenizer is a kind of equipment, which make a mixture of two or more substance mixed equally. It could improve the stability of the liquid and taste. Homogenized liquid is more smooth and more easily digestible. The homogenizer could be used for milk,ice cream, fruit, herb drink and so on.


    Milk Homogeniser parameters


    Model

    SRH500-100 Milk Homogeniser

    Rated flow: L/H

    500

    Max pressure: Mpa

    100

    Normal working pressure: Mpa

    0-80

    Inlet pressure: Mpa

    0.2-0.3

    Adaptable material feeding temperature / viscosity

    100℃/≤1000CP

    Rated motor power: KW

    15

    Size: cm

    125*90*100

    Weight: KG

    800

    Lubricating oil

    L-HM100 OR Mobil SHC627(ISO VG100)

    Housing Material

    Stainless steel

    Plunge Sealing Material

    packing

    Pressure gauge

    Diaphragm

    Support material

    shaped steel


    Milk Homogeniser applications:

    1. Food and Drink: enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, ice cream, baby food, chocolate, flavors and fragrances, milk powder.
    2. Chemical: Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity improvers.
    3. Cosmetics: Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
    4. Pharmaceutical: Antibiotics, skin creams, intravenous emulsion, ointments, tablet coatings, lipostiomes.

    Working Theory:


    The working method of SAMRO homogenizer as following, when product is flowing through the adjustable valve, the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um) because of pressure decrease, expansion, explosion, cutting and high-speed impacting etc., then the emulsions or dispersions could be produced. This process refers to the following Fig.
    Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.


    Types of homogenizer:


    1. Manual operating Homogenizer

    Two-stage homogenizing system with manual pressure adjustment is easy to use. It is your economic choice.


    2. Hydraulic operating Homogenizer

    The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to proportional valves.


    3.Pneumatic operating Homogenizer

    The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remo.


    Spare parts:


    Checking valve: the conical valve is applicable for the most product material. The valve material can vary according to customer’s requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.

    Homogenizing valve: made of tungsten – Cobalt – Titanium alloy or erosion-resisting cemented carbide. It is applicable for 0-1000 bar homogenizing pressure and CIP cleaning.

    Sealing: packing seal and V-section seal are available for different homogenized materials.

    Plunger: Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy demonstrates that the life is 6000-10000 hours.


    We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
