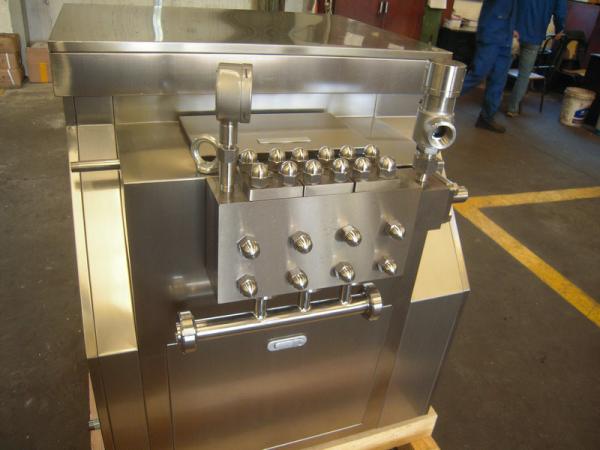

Food Industry Double Stage Homogenizer , High Pressure Homogeniser

Double Stage Homogenizer Application

For the production of ice cream and other products, it can improve the fineness and looseness of the liquid, so that its inherent quality is significantly improved.
It is used in the production of emulsions, glues, juices, etc. It can prevent or reduce the stratification of the liquid, improve the appearance of the liquid, make the color more vivid, the flavor is more concentrated, and the taste is more alcohol.
After the material liquid is refined by the device, the powder is prepared by a spray drying device. It is also the main equipment in the production of powder.

Double Stage Homogenizer Parameters

Double Stage Homogenizer Components:

Check Valve:
The check valve is conical valve. It’s applicable for the most product material. The valve material can vary according to customers’ requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.

Homogenizing valve:
Homogenizing valve is made of Tungsten-Cobalt- Titanium alloy or erosion-resisting cemented carbide. Applicable for 0-1000bar homogenizing pressure and CIP cleaning.

Sealing:
Packing seal and V-section seal are available for different homogenized material.

Plunger:
Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy industry demonstrates that the life is 6000-10000 hours.



Types of Homogenizer:

Manual Operating Homogenizer:
Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.

Hydraulic Operating Homogenizer:
The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.

Pneumatic Operating Homogenizer:
The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.

Large Capacity Homogenizer:
This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.

Laboratory Homogenizer:
Capacity: 60L/H Max Pressure</=70MPa
Minimum Sample Volume: 200 ml

Located in High Technology Industrial Zone, Anting, Shanghai, China, near Shanghai F1 Circuit, Shanghai Samro Homogenizer Co., Ltd. is a worldwide supplier of high pressure homogenizing systems. We have specialized in homogenizers since 1980. We are the largest supplier of homogenizers in China.

Our products are exported to Europe, America, Africa and Southeast Asia. We were awarded "28th International Commercial Honor Prize" in 1998, and "High-Quality Product Prize" & "the Recommend Products of China Entering into WTO" by Association Technologies Nouvelle De France in 2001.

Our mission is to supply our customers with high-quality homogenizers to help them use homogenizers more economically than ever before.

Welcome to visit our company and contact us.
