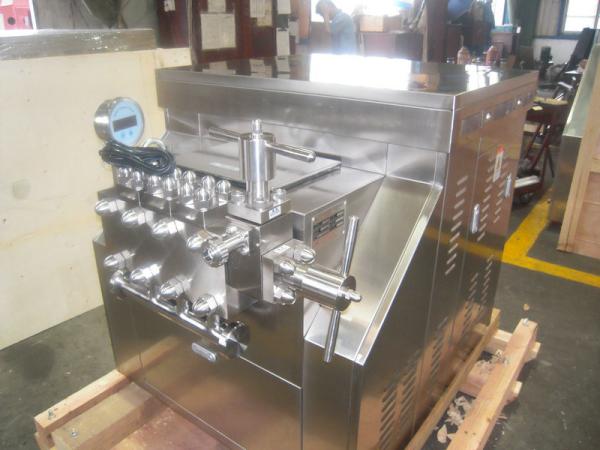

Small Scale Stainless Steel 500 L/H Milk Homogenizer Machine

Milk Homogenizer Machine Specifications:

High pressure homogenizer is easy to operate and maintain the design; you can use distilled water, pure water and detergent wash cycle (do not hit the pressure switch), or disassemble the pump head manual cleaning.

Start the machine / stop control located on the side of the machine, easy to operate, can be used for emergency switch, and includes a main motor of the thermal magnetic protection.

High-pressure homogenizer equipped with a polished stainless steel shell, removable, easy inspection and maintenance. Its base stand with four rubber mat.

Since the weight of this machine by suction feed, feed pump does not need any. Simply power supply without other facilities (such as water or compressed air)

In accordance with the requirements of the sample, with gaskets of different materials; standard gasket material for the special plastic. Use a plunger seal water lubrication special PTFE.

Milk Homogenizer Machine parameters

Milk Homogeniser applications:

1. Food and Drink: enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, ice cream, baby food, chocolate, flavors and fragrances, milk powder.
2. Chemical: Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity improvers.
3. Cosmetics: Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
4. Pharmaceutical: Antibiotics, skin creams, intravenous emulsion, ointments, tablet coatings, lipostiomes.


Working Theory:

The working method of SAMRO homogenizer as following, when product is flowing through the adjustable valve, the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um) because of pressure decrease, expansion, explosion, cutting and high-speed impacting etc., then the emulsions or dispersions could be produced. This process refers to the following Fig.
Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.

Types of homogenizer:

1. Manual operating Homogenizer

Two-stage homogenizing system with manual pressure adjustment is easy to use. It is your economic choice.

2. Hydraulic operating Homogenizer

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to proportional valves.

3.Pneumatic operating Homogenizer

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remo.

Spare parts:

Checking valve: the conical valve is applicable for the most product material. The valve material can vary according to customer’s requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.

Homogenizing valve: made of tungsten – Cobalt – Titanium alloy or erosion-resisting cemented carbide. It is applicable for 0-1000 bar homogenizing pressure and CIP cleaning.

Sealing: packing seal and V-section seal are available for different homogenized materials.

Plunger: Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy demonstrates that the life is 6000-10000 hours.

We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
