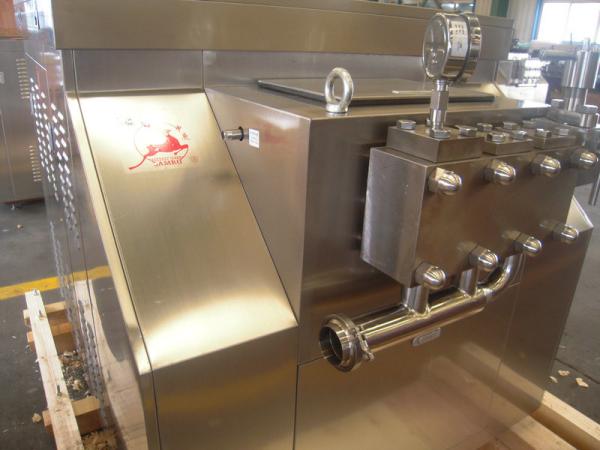

    Vacuum Pneumatic 6000L Ice Cream Homogenizer Machine

    Ask Lasest Price
    Brand Name : SAMRO
    Model Number : SRH6000-60
    Certification : ISO
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 20-30 working days after receiving down payment
    • Product Details
    • Company Profile

    Vacuum Pneumatic 6000L Ice Cream Homogenizer Machine

    Vacuum Pneumatic 6000L Ice Cream Homogenizer Machine


    Ice Cream Homogenizer MachineIntroduction


    It is a special equipment in liquid materal homogenization, lessening and high pressure transportation, which are applied widely for food, dairy, beverage, madicine, fine chemical and bio-engineering technology, etc.


    Ice Cream Homogenizer Machine technical parameters:


    Model

    SRH6000-60 Ice Cream Homogenizer Machine

    Rated flow: L/H

    6000

    Max pressure: Mpa

    60

    Normal working pressure: Mpa

    0-48

    Inlet pressure: Mpa

    0.2-0.3

    Adaptable material feeding temperature / viscosity

    100℃/≤1000CP

    Rated motor power: KW

    110

    Size: cm

    190*150*150

    Weight: KG

    4000

    Lubricating oil

    L-HM100 OR Mobil SHC627(ISO VG100)

    Housing Material

    Stainless steel

    Plunge Sealing Material

    packing

    Pressure gauge

    Diaphragm

    Support material

    shaped steel


    Ice Cream Homogenizer Machine Types


    1.Manual Operating Homogenizer

    Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.

    2.Hydraulic Operating Homogenizer

    The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.

    3.Pneumatic Operating Homogenizer

    The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.

    4.Large Capacity Homogenizer

    This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.

    5.Laboratory Homogenizer

    Capacity: 60L/H Max Pressure</=70MPa

    Minimum Sample Volume: 200ml


    Qustions you may have about our company:


    1. Are you a new company?

    Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.


    2. Do you have different pressure from the mentioned one?

    Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you the best service and rather competitive price.
