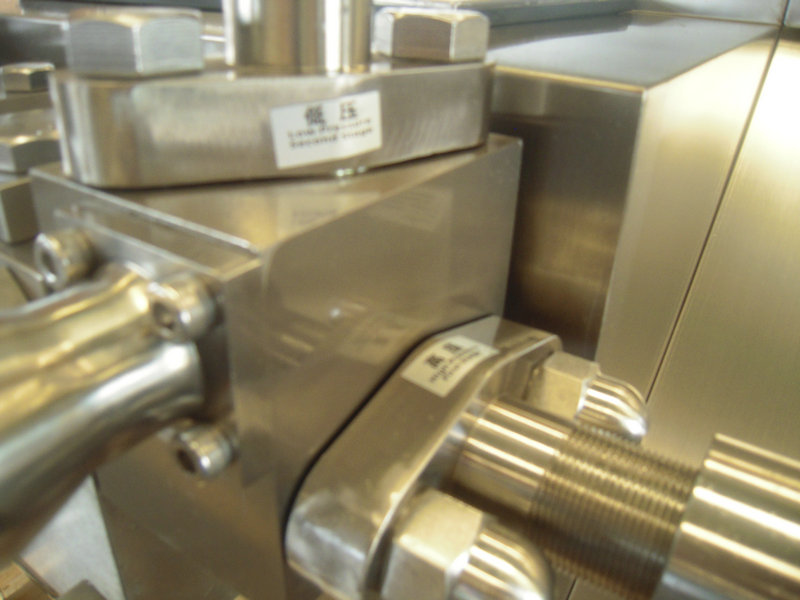

Milk Juice Yogurt Soybean 200L/H Dairy Homogenizer

Dairy Homogenizer Working method:

when product is flowing through the adjustable valve ,the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um ) because of pressure decrease, expansion, explosion,cutting and high-speed impacting etc., then the emulsions or dispersions could be produced.Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.

Dairy Homogenizer Technical parameters

Other specification

Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.

Plunger:High hardness stainless alloy(PH-type)

Check valve:High hardness stainless alloy (GrMoFr), abrade-resisting and impact-resisting

Pump block: SUS321.

Sealing: packing seal, with heat-proof reaching 100℃

Dairy Homogenizer applications:

1. Food and Drink: enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, ice cream, baby food, chocolate, flavors and fragrances, milk powder.
2. Chemical: Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity improvers.
3. Biotechnology: Cell disruption of yeast. E.coil other bacteria and algae.
4. Cosmetics: Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
5. Pharmaceutical: Antibiotics, skin creams, intravenous emulsion, ointments, tablet coatings, lipostiomes.


WORKING THEORY:

The working method of SAMRO homogenizer as following, when product is flowing through the adjustable valve, the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um) because of pressure decrease, expansion, explosion, cutting and high-speed impacting etc., then the emulsions or dispersions could be produced. This process refers to the following Fig.
Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.

Types of homogenizer:

1. Manual operating Homogenizer

Two-stage homogenizing system with manual pressure adjustment is easy to use. It is your economic choice.

1. Hydraulic operating Homogenizer

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to proportional valves.

1. Pneumatic operating Homogenizer

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remo.

Spare parts:

Checking valve: the conical valve is applicable for the most product material. The valve material can vary according to customer’s requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.

Homogenizing valve: made of tungsten – Cobalt – Titanium alloy or erosion-resisting cemented carbide. It is applicable for 0-1000 bar homogenizing pressure and CIP cleaning.

Sealing: packing seal and V-section seal are available for different homogenized materials.

Plunger: Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy demonstrates that the life is 6000-10000 hours.

Questions you may have about our factory:

1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.

2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.

3. What’s the meaning of your Model No.?

We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.

We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
