ShangHai Samro Homogenizer CO.,LTD Samro Homogenizer - Your Best Choice
10 Years
| Ask Lasest Price | |
| Brand Name : | SAMRO |
| Model Number : | SRH3000-30 |
| Certification : | ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 50 sets per month |
| Delivery Time : | 20-30 working days after receiving down payment |
Stainless Steel Dairy Homogenizer For Chemical Biotechnology Pharmaceutical
Dairy Homogenizer Types
Manual Operating Homogenizer
Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.

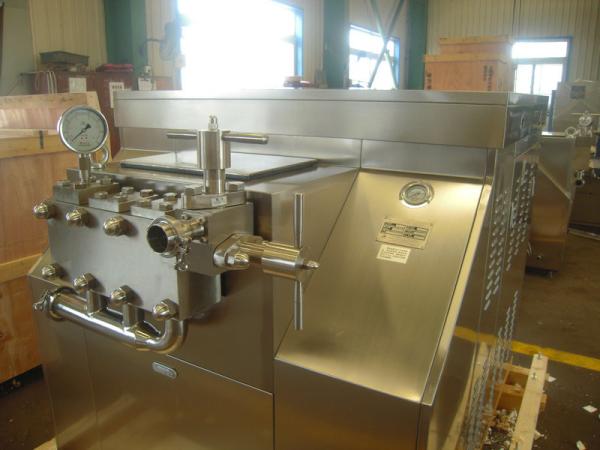

Hydraulic Operating Homogenizer
The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.
Pneumatic Operating Homogenizer
The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.
Large Capacity Homogenizer
This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.
Laboratory Homogenizer
Capacity: 60L/H Max Pressure</=70MPa
Minimum Sample Volume: 200ml
Two-stage Homogenizing
Dairy Homogenizer Applications:
Food and Drink
Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.
Chemical
Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.
Biotechnology
Cell disruption of yeast, E.coil other bacteria and algae.
Pharmaceutical
Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes
Cosmetics
Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
Samro Homogenizer Main model:
| NO. | Machine | Piston | Working | MAX Working | Continual | Power | Weight | Size |
| Model | radix | rate | Pressure | Working | KW | Kg | L×W×H | |
| (Liters/Hr) | (Bar)MPa | Pressure | M | |||||
| (Bar) | ||||||||
| 1 | SRH60-70 | 1 | 60 | 70 | 0-56 | 3 | 270 | 0.7×0.4×1.3 |
| 2 | SRH250-70 | 3 | 250 | 70 | 0-56 | 5.5 | 700 | 1.2×0.8×1.0 |
| 3 | SRH500-35/45/70 | 3 | 500 | 35/45/70 | 0-28/36/56 | 5.5/7.5/11 | 700/750/800 | 1.2×0.8×1.0 |
| 4 | SRH1000-35/45 | 3 | 1000 | 35/45 | 0-28/36 | 11or15 | 800/850 | 1.2×0.8×1.3 |
| 5 | SRH1000-70 | 3 | 1000 | 70 | 0-56 | 22 | 1500 | 1.2×0.9×1.4 |
| 6 | SRH1500-30/60 | 3 | 1500 | 30/60 | 0-24/48 | 15/30 | 850/1800 | 1.2×0.8×1.3 |
| 7 | SRH1500-90 | 3 | 1500 | 90 | 0-72 | 45 | 2800 | 1.6×1.1×1.6 |
| 8 | SRH2000-25/30 | 3 | 2000 | 25/30 | 0-20/24 | 15/22 | 1500 | 1.2×0.9×1.4 |
| 9 | SRH2000-40 | 3 | 2000 | 40/45 | 0-32 | 30 | 1800 | 1.3×0.9×1.5 |
| 10 | SRH2000-70 | 3 | 2000 | 70 | 0-56 | 45 | 2800 | 1.6×1.1×1.6 |
| 11 | SRH2500-40 | 3 | 2500 | 40 | 0-32 | 37 | 1800 | 1.2×0.8×1.4 |
| 12 | SRH3000-25/30 | 3 | 3000 | 25/30 | 0-20/24 | 30 | 1600/1800 | 1.3×0.9×1.5 |
| 13 | SRH3000-40 | 3 | 3000 | 40 | 0-32 | 37 | 1800 | 1.7×1.1×1.5 |
| 14 | SRH3000-55 | 3 | 3000 | 55 | 0-44 | 55 | 2800 | 1.6×1.1×1.6 |
| 15 | SRH3000-70 | 4 | 3000 | 70 | 0-56 | 75 | 3000 | 1.7×1.5×1.3 |
| 16 | SRH3500-40 | 3 | 3500 | 40 | 0-32 | 45 | 2800 | 1.6×1.1×1.6 |
| 17 | SRH3500-50 | 3 | 3500 | 50 | 0-40 | 55 | 2800 | 1.6×1.1×1.6 |
| 18 | SRH4000-25/30 | 3 | 4000 | 25/30 | 20/24 | 37/40 | 1800 | 1.7×1.1×1.5 |
| 19 | SRH4000-40 | 3 | 4000 | 40 | 0-32 | 55 | 2800 | 1.6×1.1×1.6 |
| 20 | SRH4000-60 | 3 or 4 | 4000 | 60 | 0-48 | 75 | 3000 | 1.7×1.5×1.3 |
| 21 | SRH4000-70 | 4 | 4000 | 70 | 0-56 | 90 | 3000 | 1.7×1.5×1.3 |
| 22 | SRH5000-25/30 | 3 | 5000 | 30 | 0-20/24 | 45/55 | 2800 | 2.3×1.1×1.4 |
| 23 | SRH5000-45 | 4 | 5000 | 45 | 36 | 75 | 4000 | 1.7×1.5×1.3 |
| 24 | SRH5000-70 | 4 | 5000 | 70 | 56 | 110 | 4500 | 1.8×1.5×1.4 |
| 25 | SRH6000-25/30 | 3 or 4 | 6000 | 25/30 | 0-20/24 | 55/75 | 4000 | 1.7×1.5×1.3 |
| 26 | SRH6000-40 | 4 | 6000 | 40 | 0-32 | 75 | 4500 | 1.7×1.5×1.3 |
| 27 | SRH6000-55 | 4 | 6000 | 55 | 0-44 | 110 | 5000 | 1.8×1.5×1.4 |
| 28 | SRH7000-25/35 | 3 or 4 | 7000 | 25/35 | 20/28 | 55/75 | 4000 | 1.7×1.5×1.3 |
| 29 | SRH7500-30 | 4 | 7000 | 30 | 0-24 | 75 | 4500 | 1.7×1.5×1.3 |
| 30 | SRH8000-25/30 | 3 or 4 | 8000 | 25/30 | 0-20/24 | 75 | 4000 | 1.7×1.5×1.3 |
| 31 | SRH8000-40 | 4 | 8000 | 40 | 0-32 | 110 | 5000 | 1.8×1.5×1.4 |
| 32 | SRH10000-25 | 4 | 10000 | 25 | 0-20 | 90 | 4500 | 1.8×1.5×1.4 |
| 33 | SRH10000-35 | 4 | 10000 | 35 | 0-28 | 110 | 5000 | 1.8×1.5×1.4 |
| 34 | SRH10000-40 | 4 | 10000 | 40 | 0-32 | 132 | 5000 | 2.2×1.6×1.4 |
| 35 | SRH10000-45 | 4 | 10000 | 45 | 0-36 | 132 | 5000 | 2.2×1.6×1.4 |
| 36 | SRH12000-30 | 4 | 12000 | 30 | 0-24 | 110 | 4500 | 1.8×1.5×1.4 |
| 37 | SRH12000-40 | 4 | 12000 | 40 | 0-32 | 132 | 5000 | 2.2×1.6×1.4 |
| 38 | SRH14000-30 | 4 | 14000 | 30 | 0-24 | 132 | 5000 | 2.2×1.6×1.4 |
| 39 | SRH15000-23 | 4 | 15000 | 23 | 0-18 | 110 | 5000 | 2.2×1.6×1.4 |
| 40 | SRH16000-40 | 4 | 16000 | 40 | 0-32 | 200 | 5500 | 2.2×1.8×1.4 |
| 41 | SRTH20000-30 | 4 | 20000 | 30 | 0-24 | 200 | 5500 | 2.2×1.8×1.4 |
|
|
